About Recliner
You need not worry about assembly challenges upon receiving your Leaderseating recliner. Designed with your convenience in mind, we’ve streamlined every step to turn setup into a stress-free experience. Here’s the best part: assembling this product is simpler than building LEGO sets—just follow our clear, step-by-step instructions below.
To make it even easier, our team has thoughtfully provided specialized tools and detailed diagrams, with each operation clearly marked for your convenience. Every part is precision-crafted to fit seamlessly, so you won’t face loose connections or confusing alignments.
No prior professional experience is required at all—whether you’re a DIY beginner or a seasoned assembler, the process is intuitive from start to finish. In roughly 15 minutes, you’ll finish the assembly and effortlessly sink into the premium comfort of your Leaderseating recliner, your new go-to spot for relaxation at home.
Six Steps to Assemble the Recliner

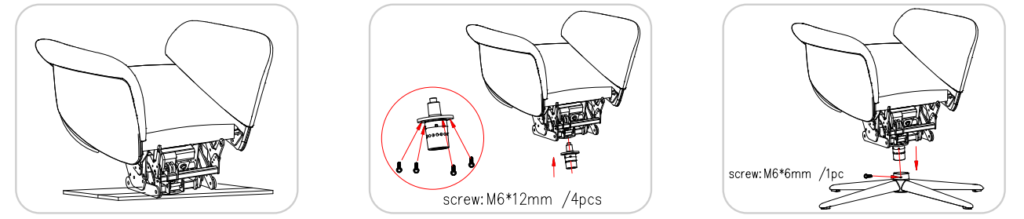

Step 1:
Remove the seat from the carton, remove the four screws from the bottom plate.
Tip: Installation is easier when the seat is placed upside down.
Step 2:
Fix the Swivel shaft on the cross bar at the bottom of the frame with screws(M6*12mm/4pcs).
Step 3:
Insert the Swivel shaft vertically into the center hole of the legs base, the hole on the outside of the legs base aligned with the hole on the side of the swivel shaft with screws (1 / M6 * 6MM) tighten.
Caution: Only when the two holes are aligned can you tighten the screw.

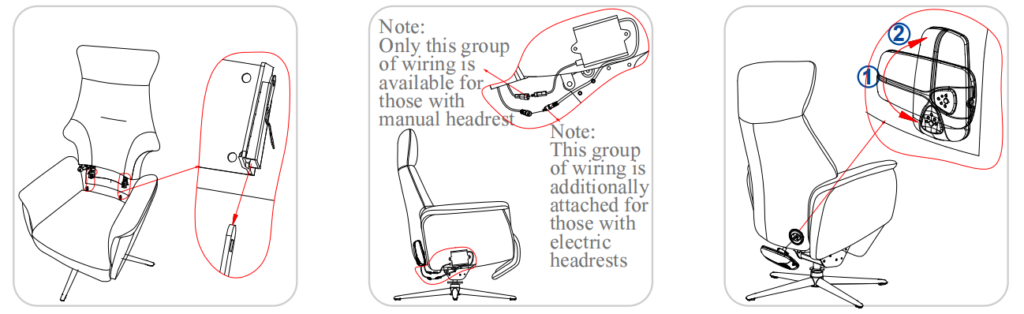

Step 4:
Align the locks of back cushion with the latch of the seat and press the latch firmly. When you hear a”click”, the installation is successful.
Step 5:
Connect the control box with the outgoing wire of back cushion.
Step 6:
① Insert the battery pack in the direction of the card slot.
② Rotate 90 degrees clockwise to complete the installation.
Should you still encounter difficulties, we recommend referring to our assembly tutorial video, which captures the full process of recliner installation in real time. We invite you to subscribe to our channel, where new content is updated weekly.
